    Ultrasonic Bumper Sensors

    The RSS100-R Reversing Aid/Obstacle Detection System contains 4 flush-mounted bumper sensors which radiate ultrasonic beams covering the area behind the vehicle. The beams are reflected by obstructions and objects behind the vehicle and re-enter the sensors. The reflected beam information is processed and the distance to the object is shown on the dash-mounted display. To alert the driver, audible signals are also emitted. The shorter the distance the more intense the audio signals become. The system is activated when reverse gear is engaged and senses objects up to 5 feet away.

    This type of rear bumper protection is quickly becoming a standard for most car makers. Many luxury models are equipped with reversing aid system as standard equipment but that does not mean other models are less prone to rear bumper damage, even from low-speed fender-benders.

    Features of the RSS100-R Reversing Aid System:

  • Available for Front Bumpers (RSS100-F)
  • Four flush-mounted ultrasonic sensors, seamlessly integrated into your vehicle's rear bumper
  • Interior mounted display and speaker provide obstacle warnings
  • Automatically activates when vehicle is shifted into reverse
  • Helps you detect objects behind your vehicle such as children at play, trash cans, steps, fire hydrants, etc.
  • Optionally, sensors can be painted to match the bumper color
  • Works on cars, trucks, SUVs, and vans
  • How Important are the Back-up Sensors?

    Bumper evaluations Information at the Insurance Highway Safety Organization
    Bumper Q & A's National Highway Transportation Safety

    Rearview Mirror/Camera System

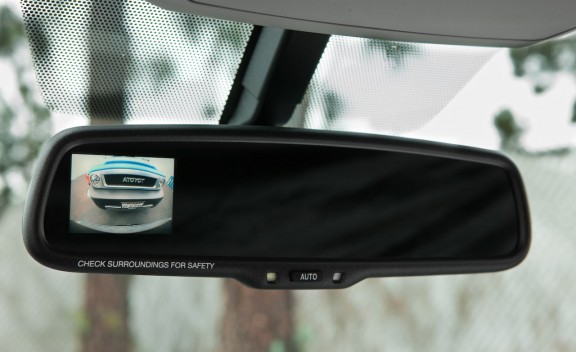

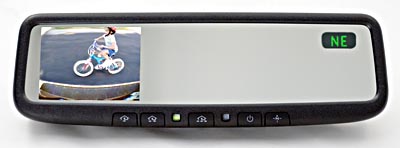

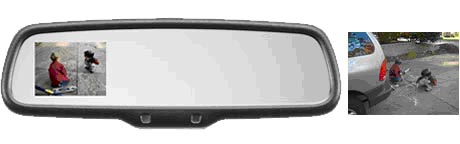

    In addition to automatically detecting and eliminating dangerous headlamp glare from rearward approaching vehicles, the Gentex RCD mirror makes backing up safer and easier. Another safety and convenience feature developed by Gentex is a video display located in the auto-dimming rearview mirror. When paired with a backup camera the display shows a real-time panoramic view of the rear of the vehicle. The display appears through the mirror glass automatically when the vehicle is shifted into "reverse" it disappears when the vehicle is shifted into any other gear.

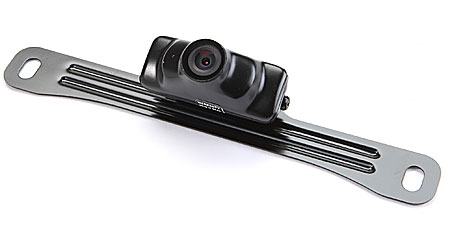

    Display Technology -- the liquid crystal display (LCD) appears through the mirror's reflective surface via Gentex's proprietary "transflective" coatings and lighting techniques. The result is a bright, high-resolution display in an intuitive location. The display is driven by a camera located at the rear of the vehicle, and is displayed on the left side of the mirror.
    See some of our installation photos here.

    Safety and Convenience - From a safety perspective, the Rear Camera Display Mirror should help reduce the risk of backup accidents, especially for vehicles with limited rear vision. Another benefit is the convenience associated with hooking up to boats, RVs and utility trailers.

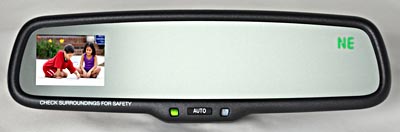

    Auto Dimming Rearview mirrors with LCD dispaly are available in several models: 2.4 inch RCD Auto Dimming Mirror, 2.4 inch RCD Auto Dimming Mirror with Compass, 3.5 inch RCD Auto Dimming Mirror with Compass and Homelink

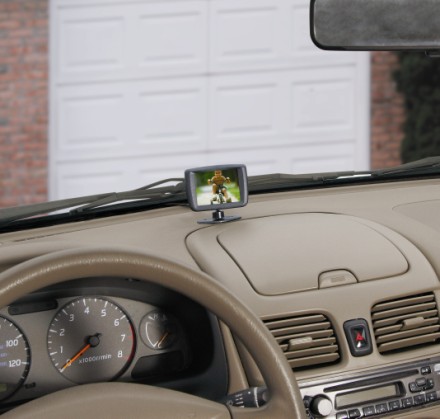

    Alternatively, a dash board mounted LCD monitor can be used to display images from the back-up camera. The monitor will turn on when the vehicle is shifted into reverse.

    Auto Dimming/Compass Rearview Mirrors

    Rear-view Dimmming Mirrors w/Compass

    Three Garage Door Openers

    Rear-view Dimmming Mirrors w/HomeLink

    Rear-view Dimmming Mirrors w/Compass

    Leading the way in next generation of auto products, these mirrors sense ambient light and glare from behind, and reduce annoying glare from bright lights. With features such as a compass, temperature indicator, and map lights, you have the option of customizing your mirror to containing only the features you need.

    This rearview mirror replaces your factory mirror and provides several important safety and convenience features. The sleek integrated design makes this unit unobtrusive and pleasing to the eye. It is manufactured to O.E.M standards and is a factory option on many new luxury cars.

    Auto-Dimming     The electrochromic mirror senses ambient light and glaring headlights from behind. It then automatically reduces the annoying glare from bright lights. The brighter the glare, the darker the mirror becomes. This feature may be turned off.

    PathPoint™ Electronic Compass     The integrated electronic compass is an extremely accurate computer that displays vehicle headings of N, NW, W, SW, S, SE, E and NE. Calibration data is stored in memory, which eliminates any requirement for recalibration after losing battery power.

    Outside Temperature Display     The outside temperature display is useful for safety because it is important to know when the outside temperature is near freezing. In fact the temperature display reads "ice" for the first several seconds when the outside temperature reaches 37 degrees F. This feature cautions you to anticipate road-icing conditions. This display also reads in either F or C degrees.

    HomeLink Transmitter     HomeLink Transmitter is an electronic device built-into certain models of the Auto-Dimming mirrors that operates garage doors, gates and home lighting. It learns up to 3 codes from existing controllers and can be used for variety of remote-controlled functions.

    Map Lights     The integrated map lights with driver and passenger switch controls allow downward illumination without interfering with the driver's visibility.

    The Choice is Yours     Choose the features you want, skip features you don't need, these mirrors can be ordered just the way you like'em.
